· 26 or 30 inches wide by 11.5 inches deep
· Manufactured from phenolic - a strong and non-flexing composite allowing for an
elegant ultra thin design which maximizes knee room and
height adjustment.
· Choice of two sizes makes it optimal for any Kinesis ergonomic
keyboard as well as most other keyboards.
· Room for a pointing device next to the keyboard as well as a
separate 10-key.
· Optimal tray size means an easy reach to get items on your desk,
even when tray is fully extended.
· Raised edge on back of tray ensures keyboard and input devices
stay in place if the tray is in a negative slope position.

30 inch tray - Maxim keyboard, keypad & mouse |

30 inch tray - Evolution Desktop Keyboard |

26 inch tray - Maxim keyboard & mouse |

26 inch tray - Contoured keyboard & trackball |

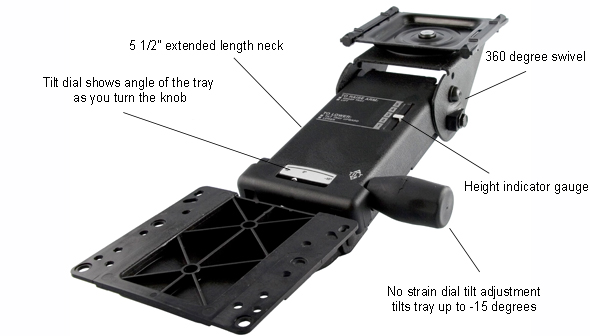

Low-Profile Articulating Arm Features:

· One step height adjustment. Simply lift tray to raise or lower it. It automatically locks in its new position. No hidden knobs or levers. Tilt does not change as you adjust height.
· Easy access to the intuitive tilt knob allows user to set negative tray slope up to -15 degrees.
· Arm slides on a smooth ball bearing track.

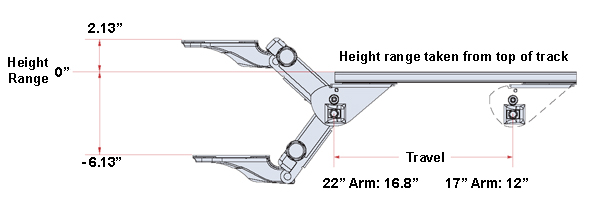

· Variable adjustment height - from desk height to minus six inches.
· Arm rotates 360 degrees.
· Low profile design for optimal leg clearance. There is no "hump" underneath which hits the knee.
IMPORTANT BEFORE ORDERING
To ensure proper arm length measure from the inside back of your desk to the outside edge. If the
measurement is under 22 inches order the 17 inch arm, if it is 22 inches or over you may order
either the 22 inch or 17 inch arm.
Note: For corner applications you will need to purchase a corner-mount desk extension
Warranty
· Two Year Limited Warranty.
· 60-Day Limited Money-Back guarantee.
